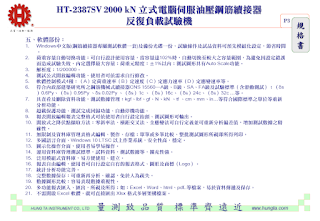

HT-2387SV 2 MN 立式電腦伺服油壓鋼筋續接器反復負載試驗機

TAF認證方式：

       1、CNS 15560 鋼筋機械式續接試驗法(2015)基本拉伸、單向拉伸、壓縮、反復負載、滑動試驗。
       2、公共工程施工綱要規範(完整版)第03210章2.2.2.節，鋼筋續接器試驗。
       3、中國土木水利學會混凝土工程設計規範與解說(土木401-86)附錄乙，SA級，A級，B級。
       4、交通部國道新建工程局施工技術規範第03210章3.2.2節，鋼筋續接器試驗(2009)。
       5、交通部高速公路局施工規範第03210章3.3.2節(2005)。
       6、內政部營建署暨內政部建築研究-鋼筋續接器施工規範及解說(草案-1999)。
       7、台北市工程施工規範第03210章3.3.2鋼筋續接器之檢驗。
       8、中國土木水利學會混凝土工程設計規範與解說(土木401-110)

 抗拉強度試驗
 靜耐力性能試驗

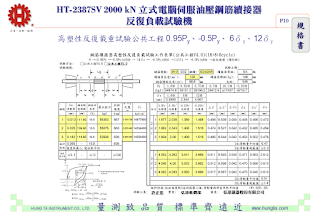

 高塑性反復負載性能試驗包含
 重複負載及滑動試驗 30回試驗
 拉壓反復24回試驗、反復負載試驗 32回試驗
 SA級接合試體拉力試驗(滑動量)、單向拉伸及滑動試驗

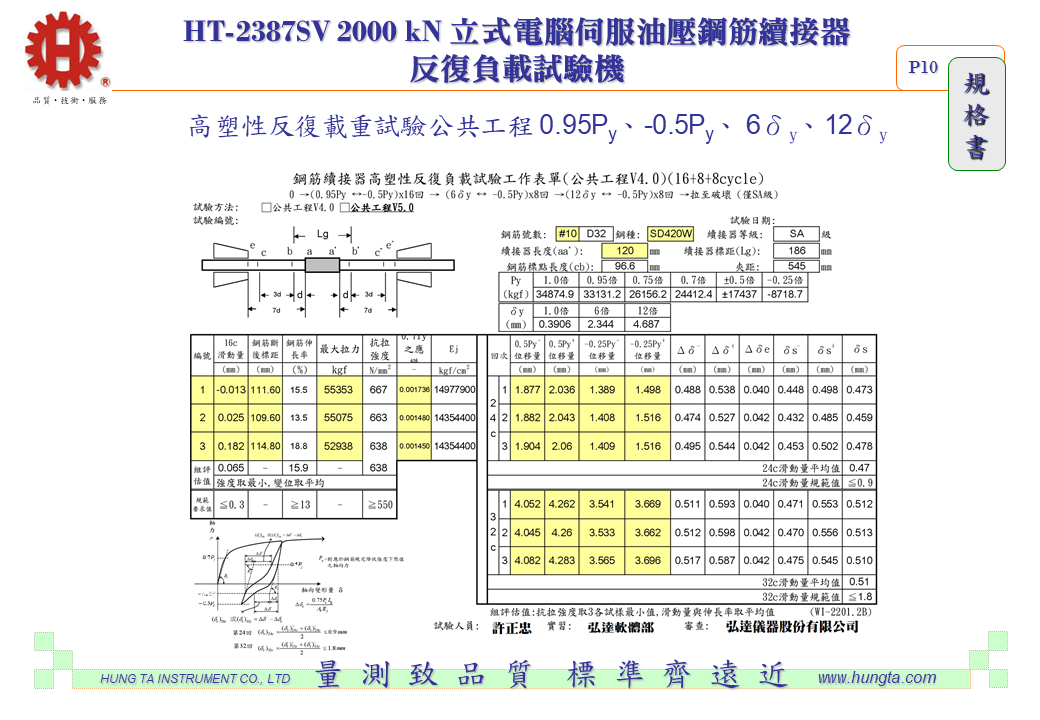

 SA級接合高塑性反復負載試驗(32回拉壓反復)
 延展性及鋼筋收縮率試驗
 擴頭竹節鋼筋之機械性質

2019年8月27日星期二

2019年8月8日星期四

優異共通性 Link ERP、SQL

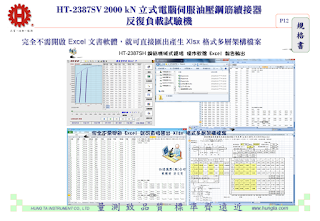

試驗數據同步導出 Access 檔案提供 SQL Server連結

試驗數據批量匯出 SQL 檔案

2018年7月19日星期四

ISO EN DIN 6892 Metallic materials -- Tensile testing

ISO 6892-1:2016 金屬材料－拉伸試驗第1部分：室溫測試方法

Metallic materials -- Tensile testing -- Part 1: Method of test at room temperature

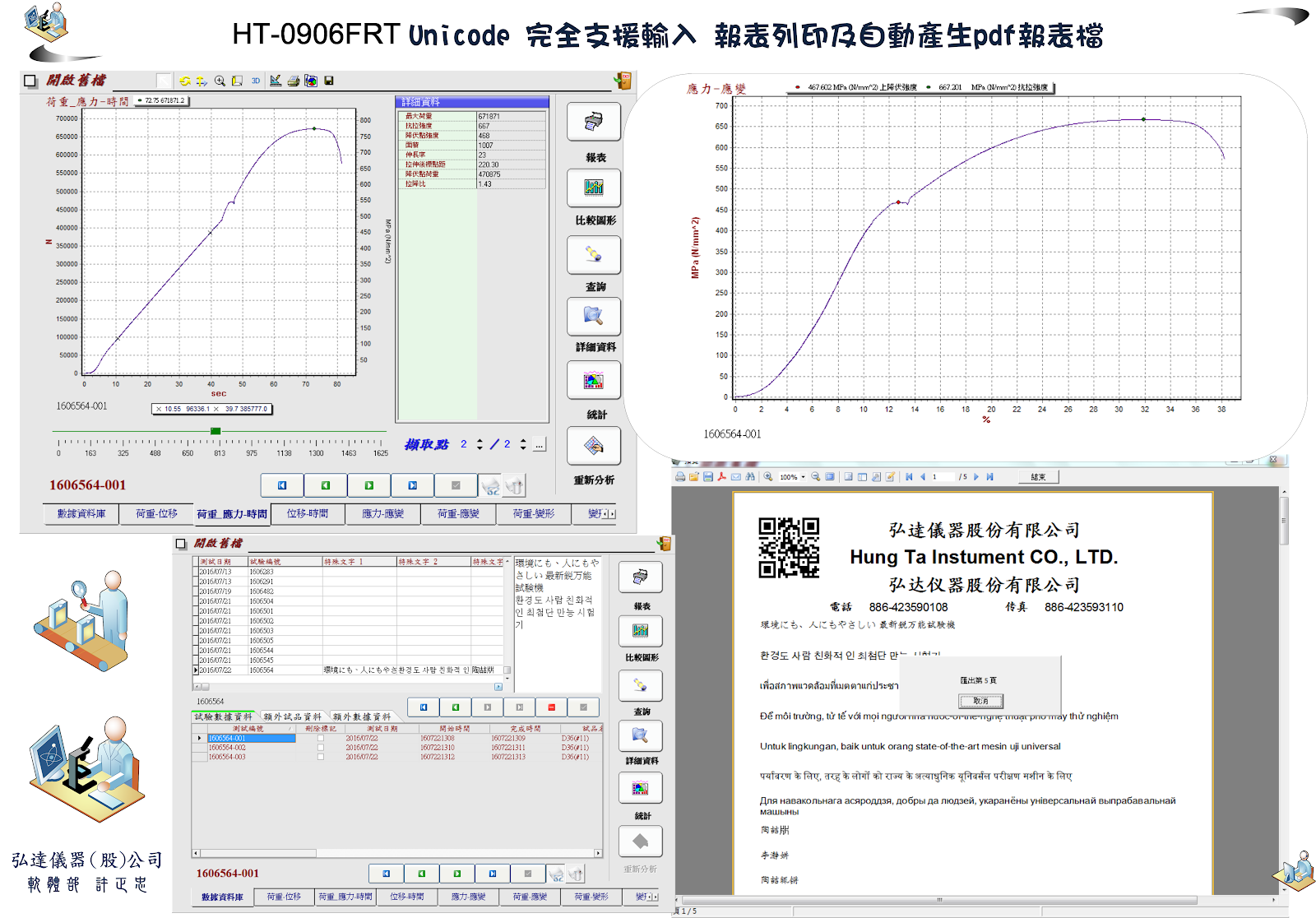

最完善的材料物性試驗分析軟體
有效的、最完善控制、資料擷取、分析及資料匯出、列印功能

2018年5月27日星期日

Differences of Latest Versions of ISO 6892-1 and ASTM E8 Tensile Testing Standards

Z percentage reduction of area, (%); A percentage elongation after fracture, (%); Ag percentage plastic extension at maximum force, (%); At percentage total extension at fracture, (%); Ae percentage yield point extension, (%); Agt percentage total extension at maximum force, (%); Rm tensile strength, (MPa); Rp proof strength, plastic extension (MPa); ReH upper yield trength (MPa); ReL lower yield strength (MPa).

ISO 6892-1:2016 says, strain rate for determination of upper yield strength, ReH , or proof strength properties, Rp and Rt; during determination of these material properties strain rate, eLe, shall be in one of two following pecified ranges.

Range 1: eLe = 0.00007 s-1
, with a relative tolerance of ±20 %.
Range 2: eLe = 0.00025 s-1
, with a relative tolerance of ±20 % (recommended, unless otherwise specified).
Strain rate for determination of the lower yield strength, RLe, and percentage yield point extension, Ae,
following the detection of upper yield strength, estimated strain rate over parallel length, eLc, shall be
maintained in one of following two specified ranges until discontinuous yielding has ended.
Range 2: eLc = 0.00025 s-1
, with a relative tolerance of ±20 % .
Range 3: eLc = 0.002 s-1
, with a relative tolerance of ±20 %.
Strain rate for the determination of the tensile strength, Rm, percentage elongation after fracture, A,
percentage total extension at the maximum force, Am, percentage plastic extension at maximum force, Ag, and percentage reduction area, Z After determination of the required yield/proof strength properties, the estimated strain rate over the parallel length, eLc shall be changed to one of the following specified ranges.

Range 2: eLc = 0.00025 s-1
, with a relative tolerance of ±20 %.
Range 3: eLc = 0.002 s-1
,with a relative tolerance of ±20 %.
Range 4: eLc = 0.0067 s-1
, with a relative tolerance of ±20 % (0.4 min-1 with a relative tolerance of ±20 %).

If the purpose of the tensile test is only to determine the tensile strength, then an estimated strain rate over parallel length of the test piece ccording to range 3 or 4 may be applied throughout the entire test.
ASTM E8:2016 standard specifies that “Control Method C - Crosshead Speed Control Method for Determining Yield Properties”- The testing machine shall be set to a crosshead speed equal to (0.0156 ± 0.003) mm/mm/min of the original reduced parallel section. However, ISO 6892-1:2016 Method A2, open Differences of Latest Versions of ISO 6892-1 and ASTM E8 Tensile Testing Standards 17 loop strain control, involves the control of the estimated strain rate over the parallel length, (eLc), which is achieved by using the crosshead separation speed (Vc) calculated by multiplying the required strain rate by the parallel length.
